120 kN Electric Hydraulic Cable Lug Crimper

Cordless hydraulic cable-lug termination for electrical installation, communication infrastructure, utility work, construction, and heavy maintenance.

Request a Quote
120 kNCrimping force
16–400 mm²Listed die range
4–8 secCrimp cycle
18 V / 4 AhTwo batteries included
Technical dossierEXQ / 01

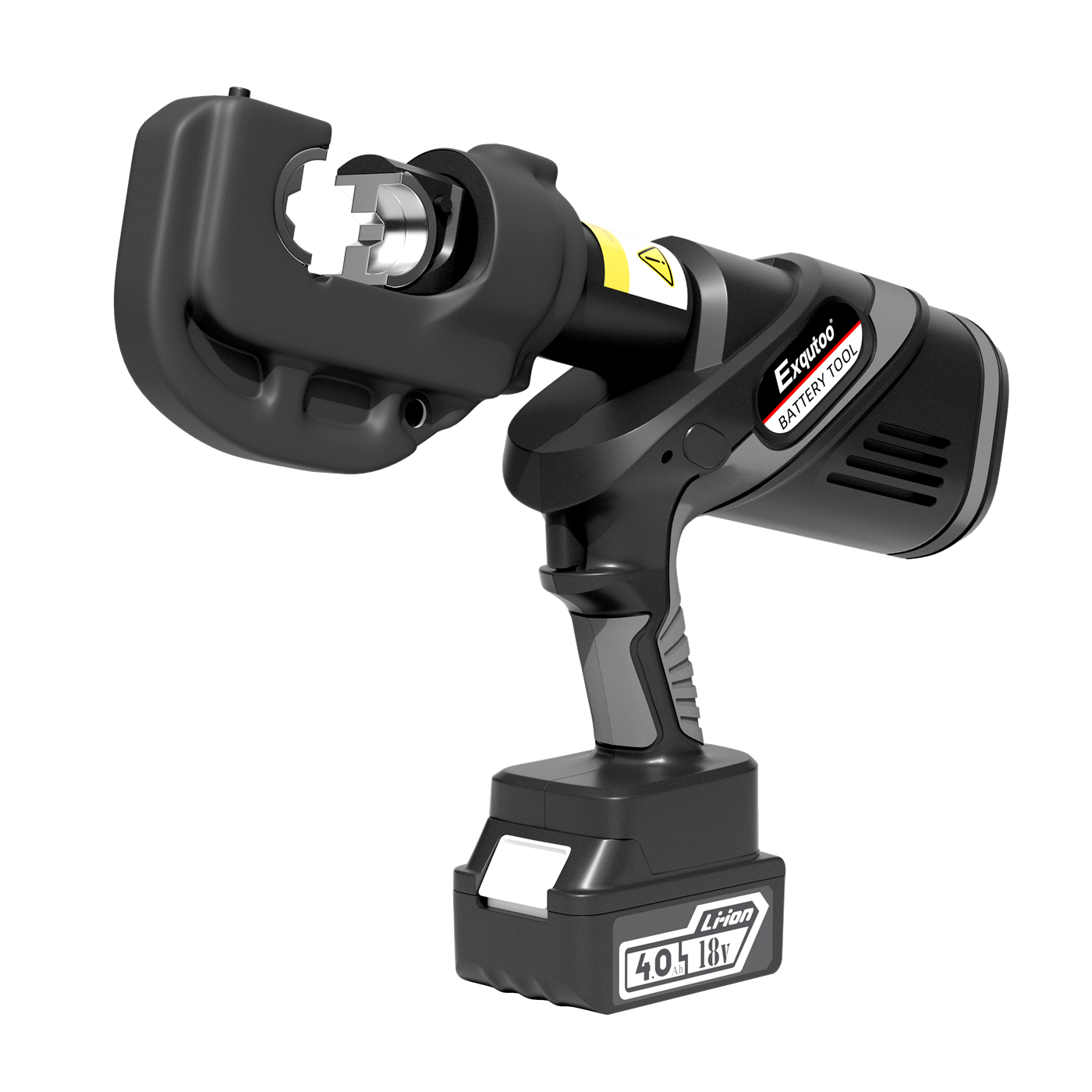

EXQUTOO 120 kN electric hydraulic cable lug crimper
Complete cordless hydraulic crimper kit
02
Controlled hydraulic termination

Product details

Complete specifications, kit contents, compatibility guidance, and the existing product imagery are retained below.

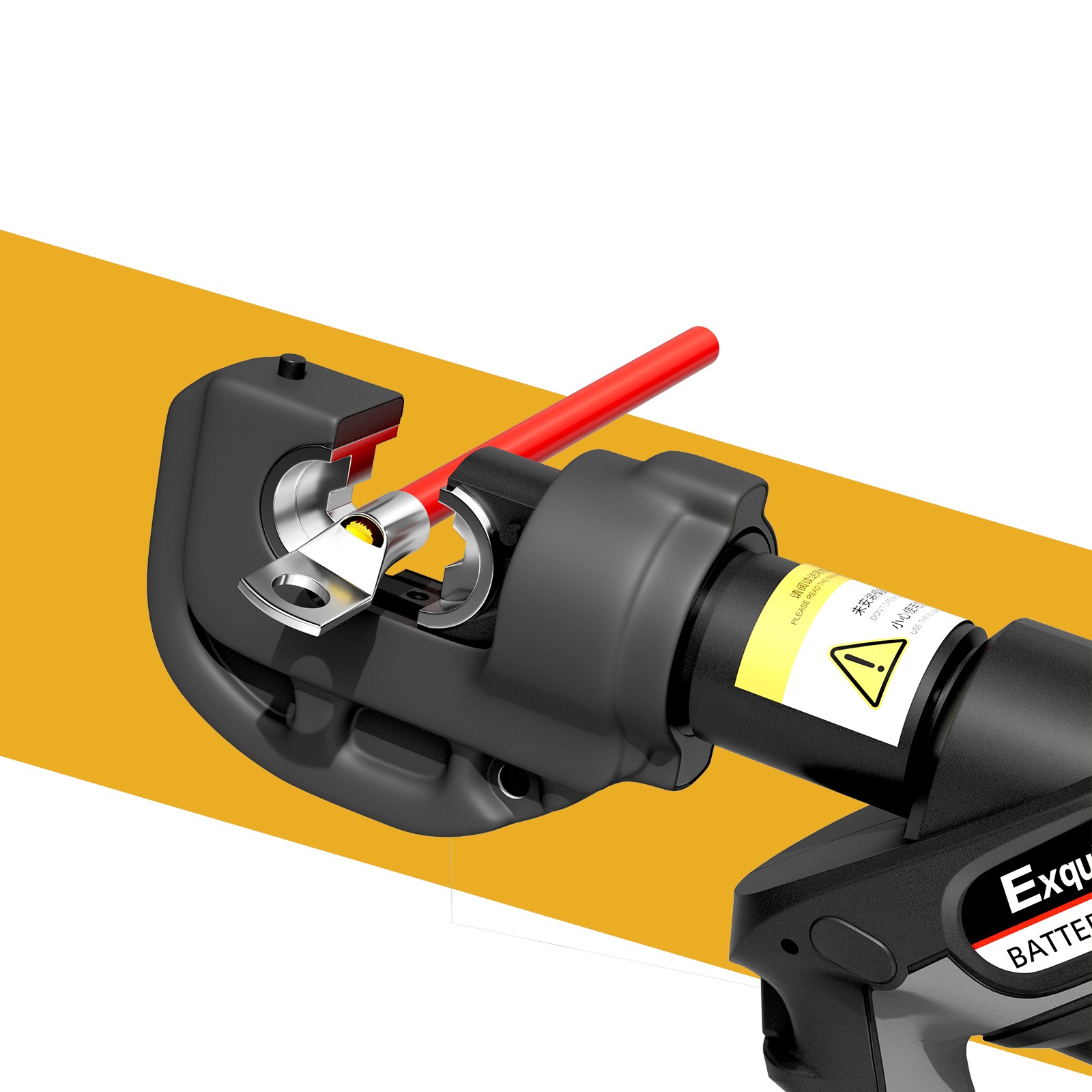

EXQUTOO hydraulic crimper terminating a cable lug
Jobsite performance

Fast, repeatable crimping with controlled force

The 120 kN hydraulic system completes common crimping cycles in 4–8 seconds. A 350° rotating head improves access in cabinets and confined installation areas.

  • Manual pressure release supports controlled tool recovery
  • 350° rotating head improves access in confined spaces
  • LCD feedback shows battery, temperature, cycle, and alarm status
  • LED work indicator improves visibility at the termination point
Confined-space accessPosition the head where the work requires

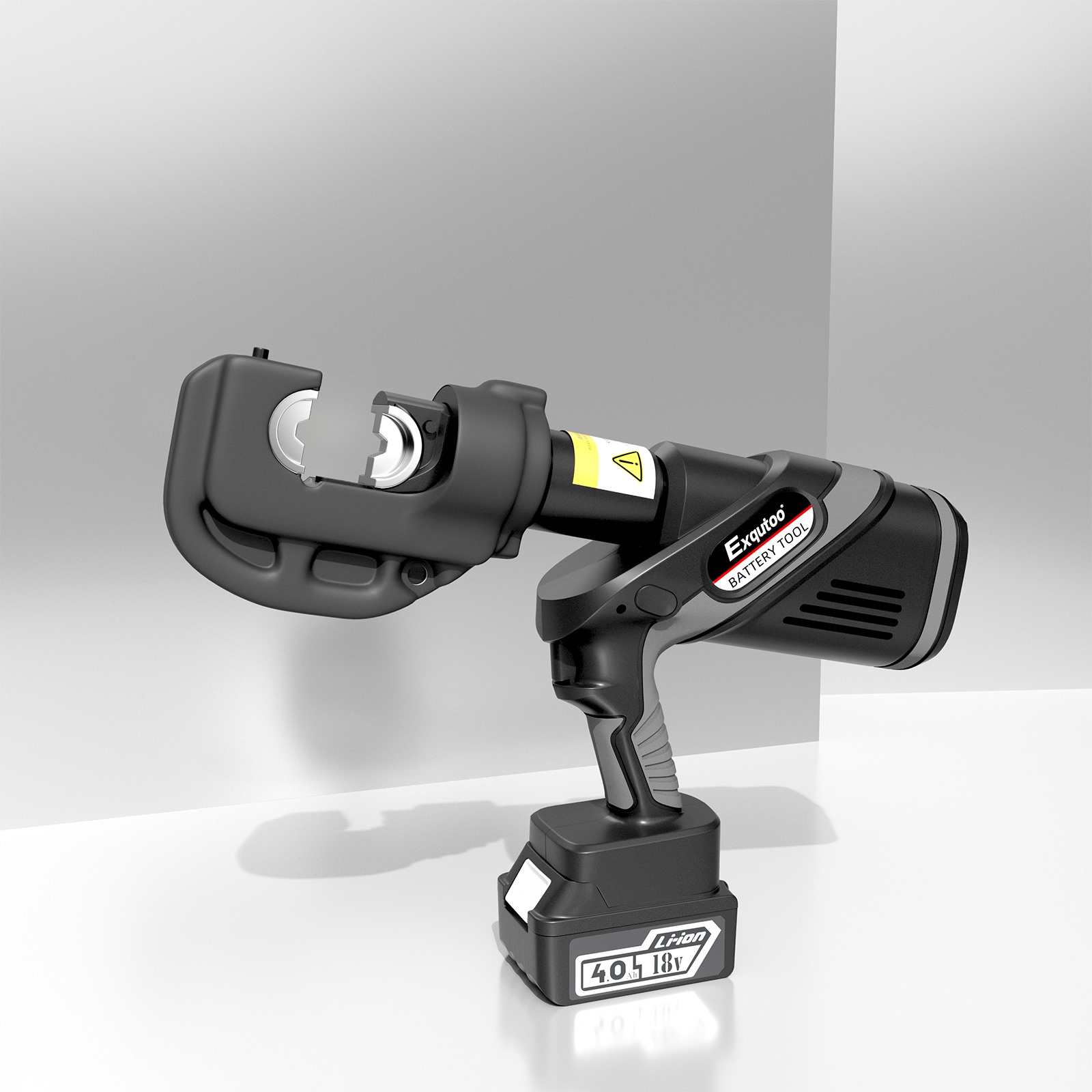

EXQUTOO hydraulic crimper with rotating head

The 350° rotating head, accessible controls, manual release, and LED indicator support positioning in cabinets and other confined work areas.

Tool statusCheck feedback during the job

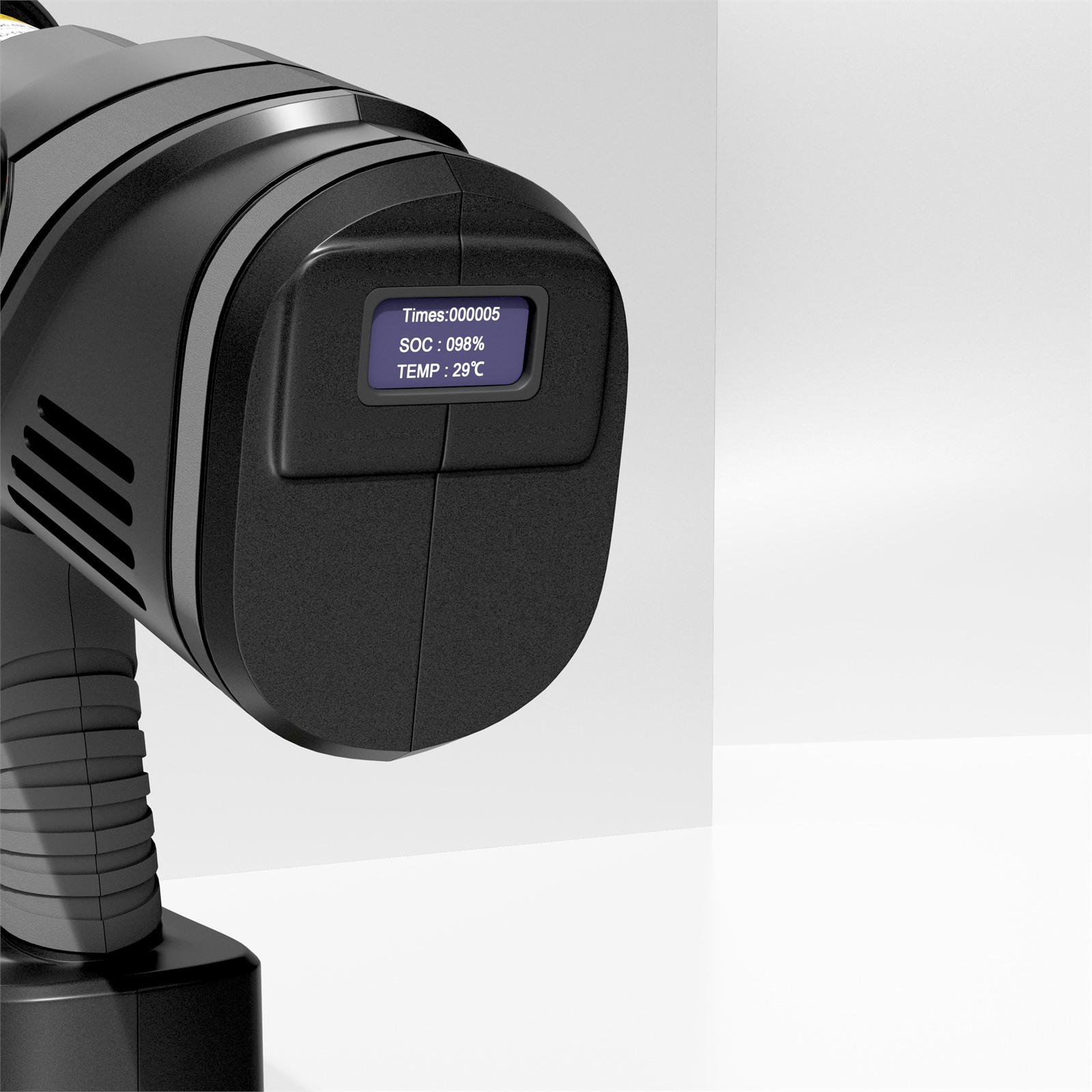

Close view of the crimper LCD status display

The LCD shows battery state, tool temperature, crimp count, and alarm messages for quick status checks during operation.

Field powerKeep a spare battery ready

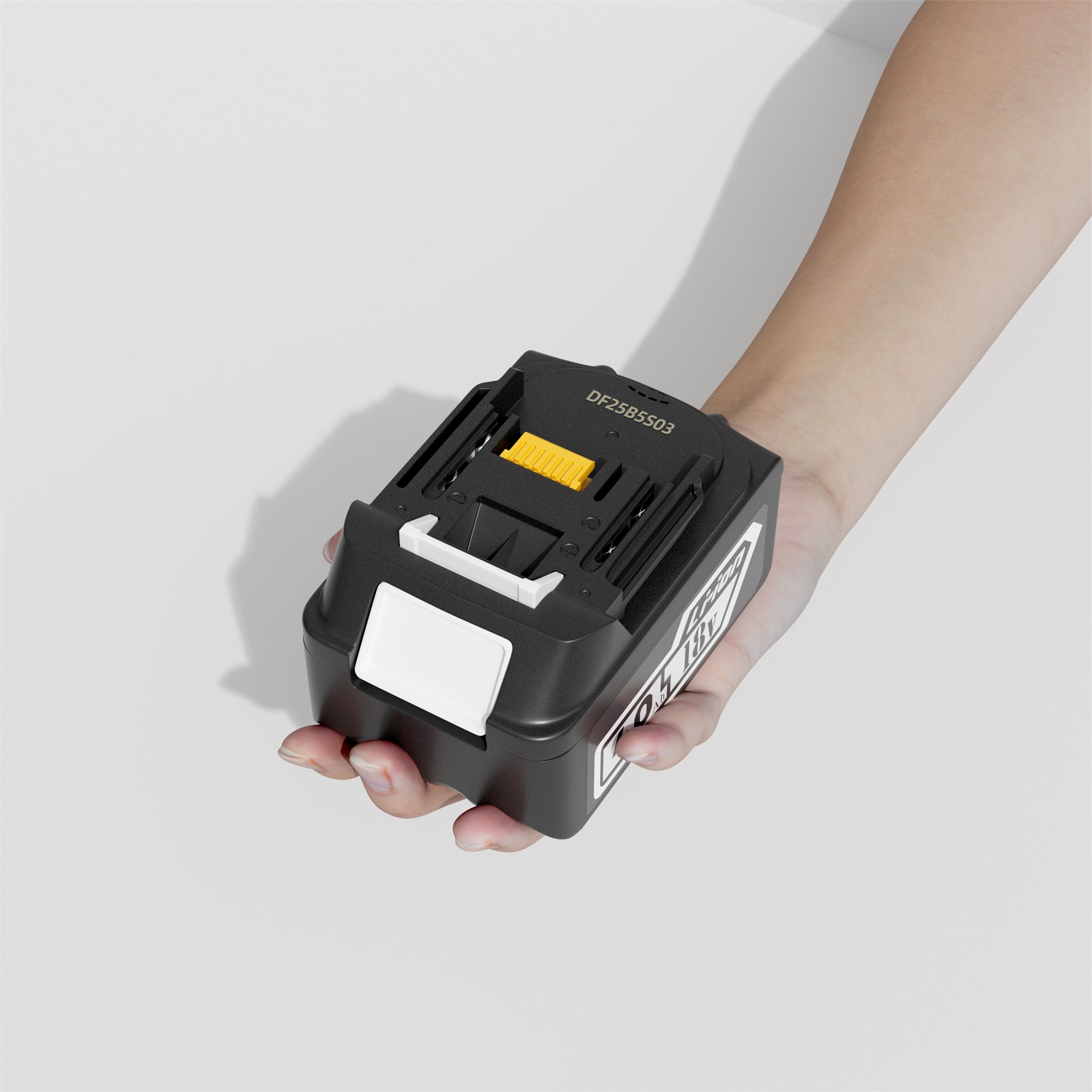

EXQUTOO 18 V 4 Ah lithium-ion battery pack

The kit includes two rechargeable 18 V 4 Ah lithium-ion batteries and one battery charger.

03
Technical data

Crimper specifications

Product typeElectric hydraulic cable lug crimper
Crimping force120 kN
Die range16–400 mm²
Conductor range6 AWG–800 kcmil
Battery voltage18 V DC
Battery capacity4 Ah
Crimp cycle4–8 seconds
Head rotation350°
Body materialPA6
Die material40Cr
Tool size16.5 × 11.8 in
Package weight30.86 lb
Check compatibility before ordering

Confirm cable size, lug material, lug dimensions, and the required die size. Do not rely on a simple mm²-to-AWG conversion alone. Contact us if you need help checking compatibility.

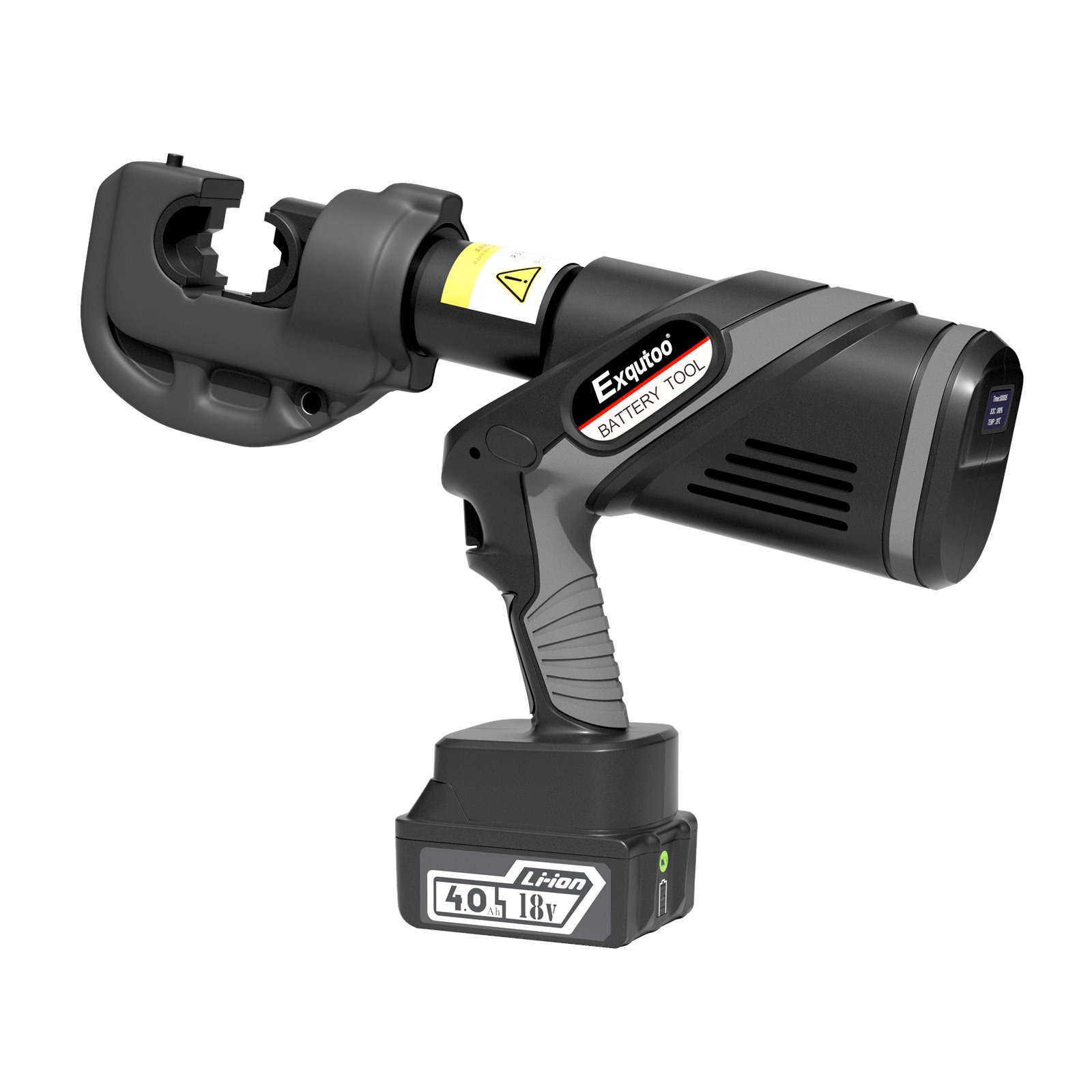

EXQUTOO 120 kN electric hydraulic cable lug crimper
Selection workflow

How to choose

  1. Confirm the cable size before choosing the die.
  2. Match lug material and lug dimensions to the termination requirement.
  3. Confirm the required die size instead of relying only on a simple mm²-to-AWG conversion.
Typical applications

Where this product fits

  • Electrical installation
  • Communication infrastructure work
  • Utility and construction work
  • Heavy maintenance
Installation and use note

Confirm cable size, lug material, lug dimensions, and the required die size before use. Follow the operating instructions supplied with the tool.

04
Complete working kit

Organized for transport and setup

The pictured configuration keeps the crimper, dies, batteries, charger, case, manual, strap, and sealing rings together.

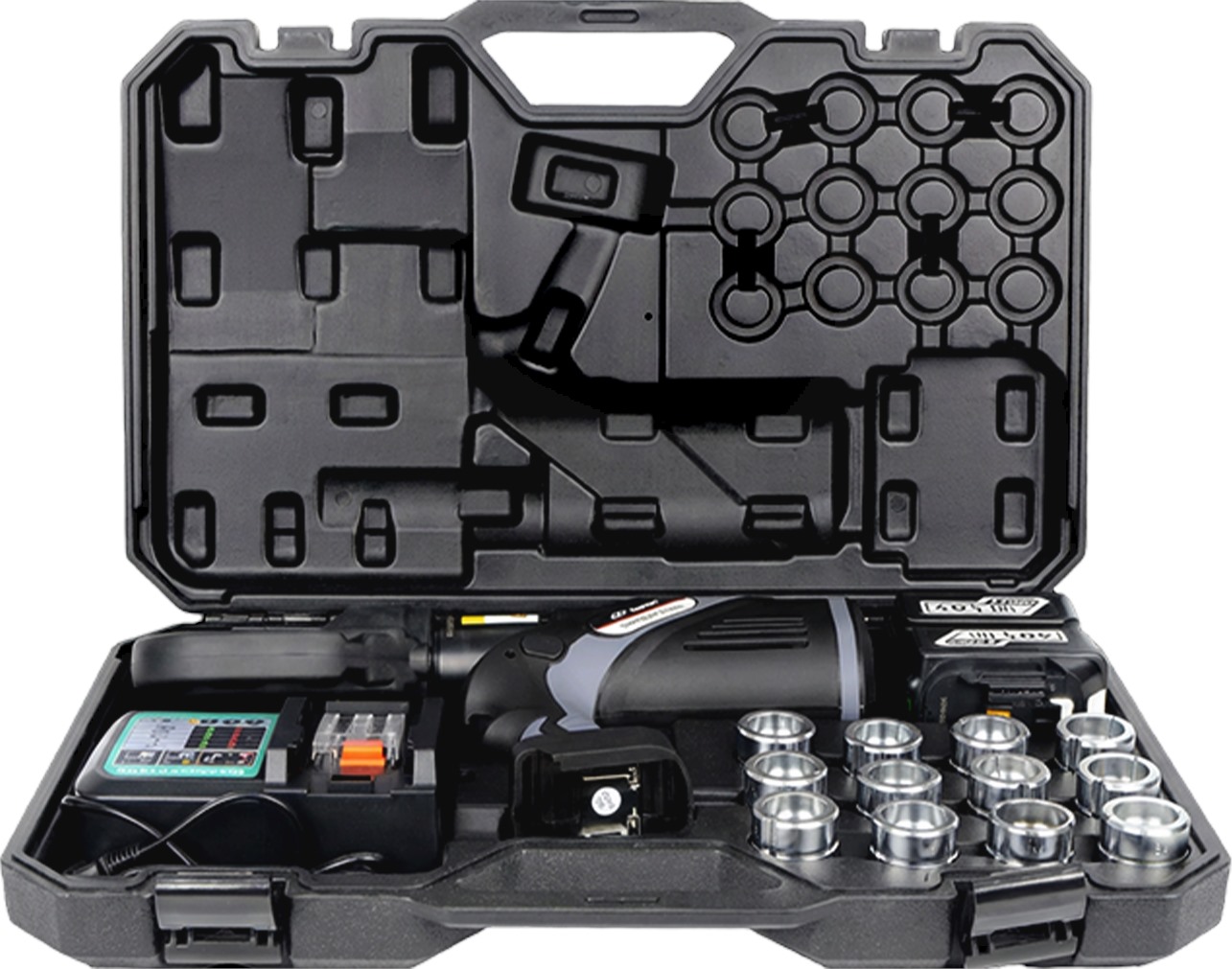

EXQUTOO hydraulic crimper kit in its storage case

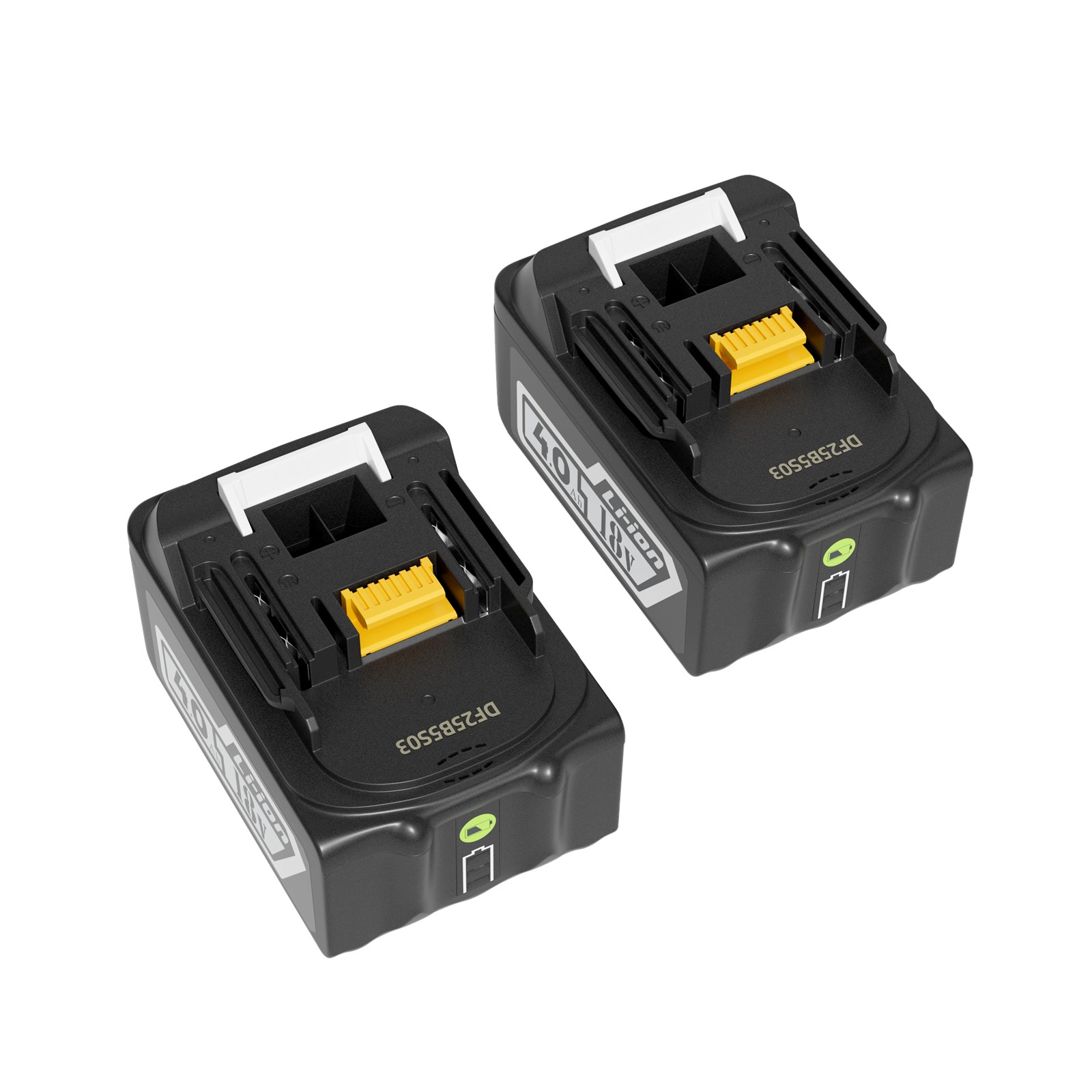

Two EXQUTOO 18 V 4 Ah batteries

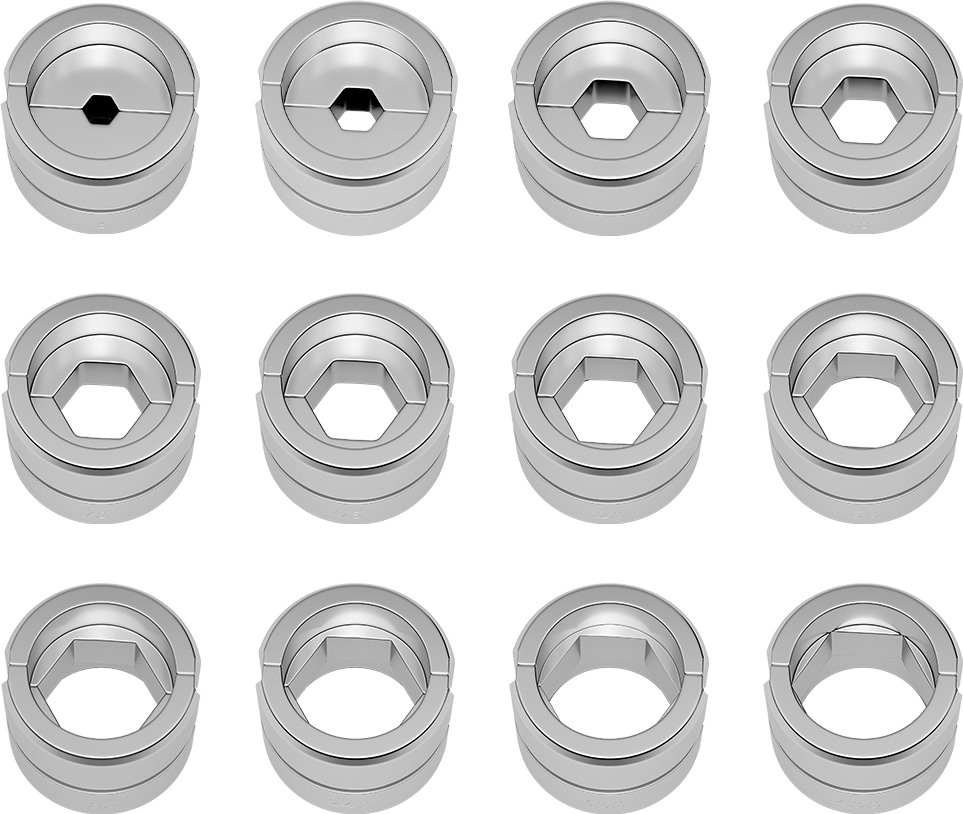

Twelve 40Cr hexagonal crimping dies

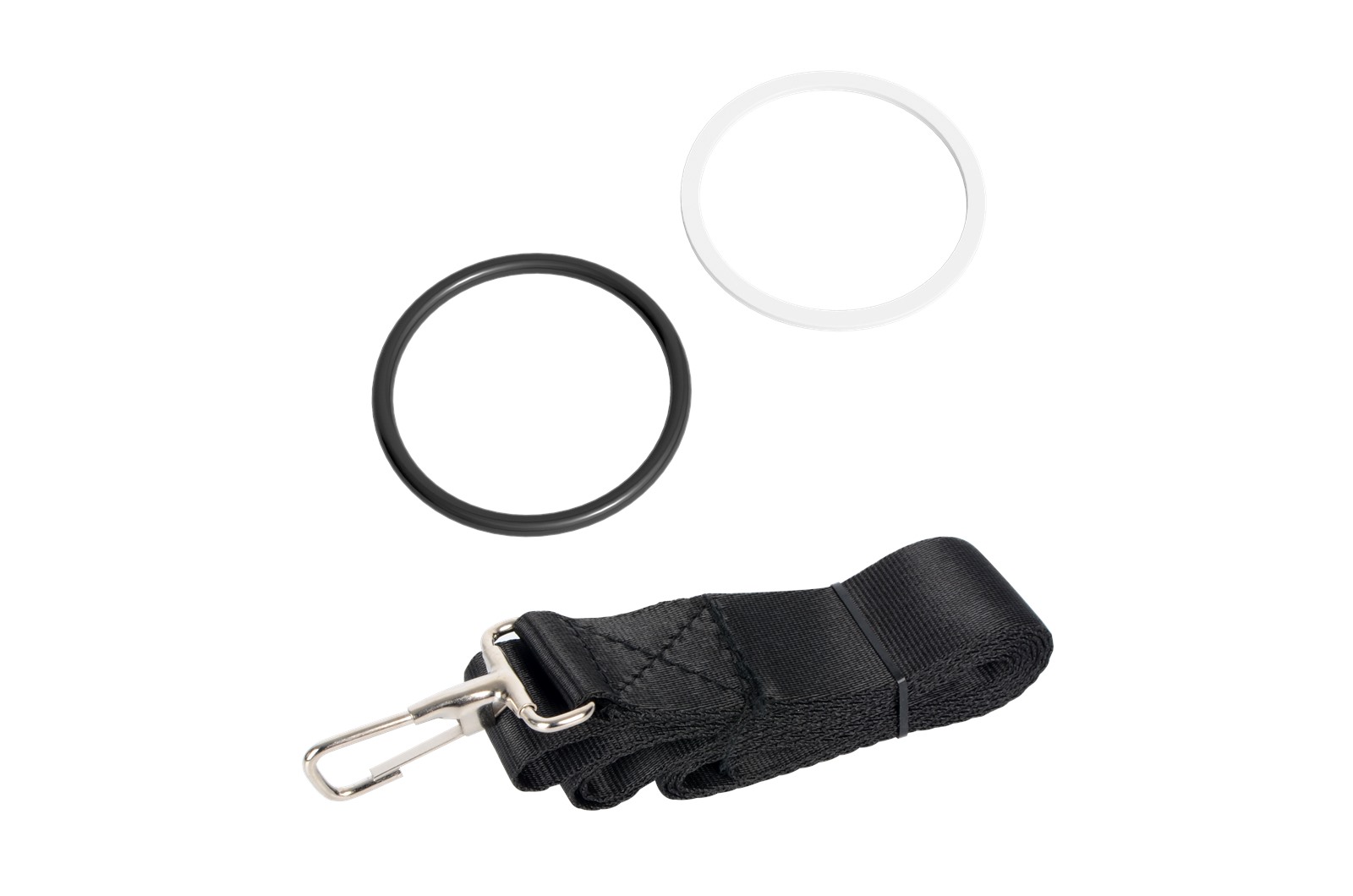

Crimper shoulder strap and sealing rings
Hydraulic crimper instruction manual
Package inventory

Complete listed configuration

Hydraulic crimper1
40Cr hexagonal dies12
18 V 4 Ah batteries2
Battery charger1
Storage case1
Manual, strap, and sealing ringsIncluded
05
Continue comparing

Related product page

Use the current product catalog to continue reviewing compatible project needs.

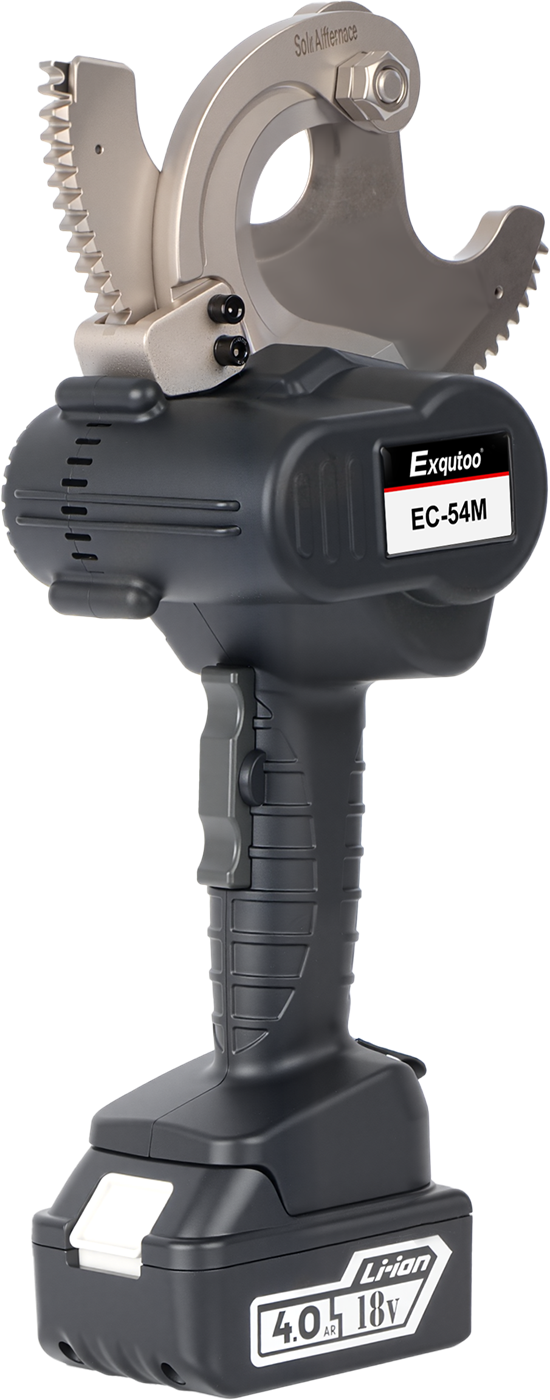

EXQUTOO EC-54M 18 V electric cable cutter Cable preparation EC-54M 18 V Electric Cable Cutter Prepare supported copper, aluminum, ACSR, armored, and communication cables before termination or maintenance work. Review product page Product directory Review all seven current EXQUTOO product pages. Compare cable tools, power and EV, wiring, hardware, and woodworking families. Open product catalog
