Powered cutting for supported large cable

EC-54M 18 V Electric Cable Cutter

Powered cable preparation for supported copper, aluminum, ACSR, armored, and communication cables before termination, replacement, or maintenance work.

Request a Quote
54 mmMaximum cutter opening
3 × 120 mm²Copper cable capacity
1200 mm²Maximum ACSR capacity
18 V / 4 AhTwo batteries included
Technical dossierEXQ / 02

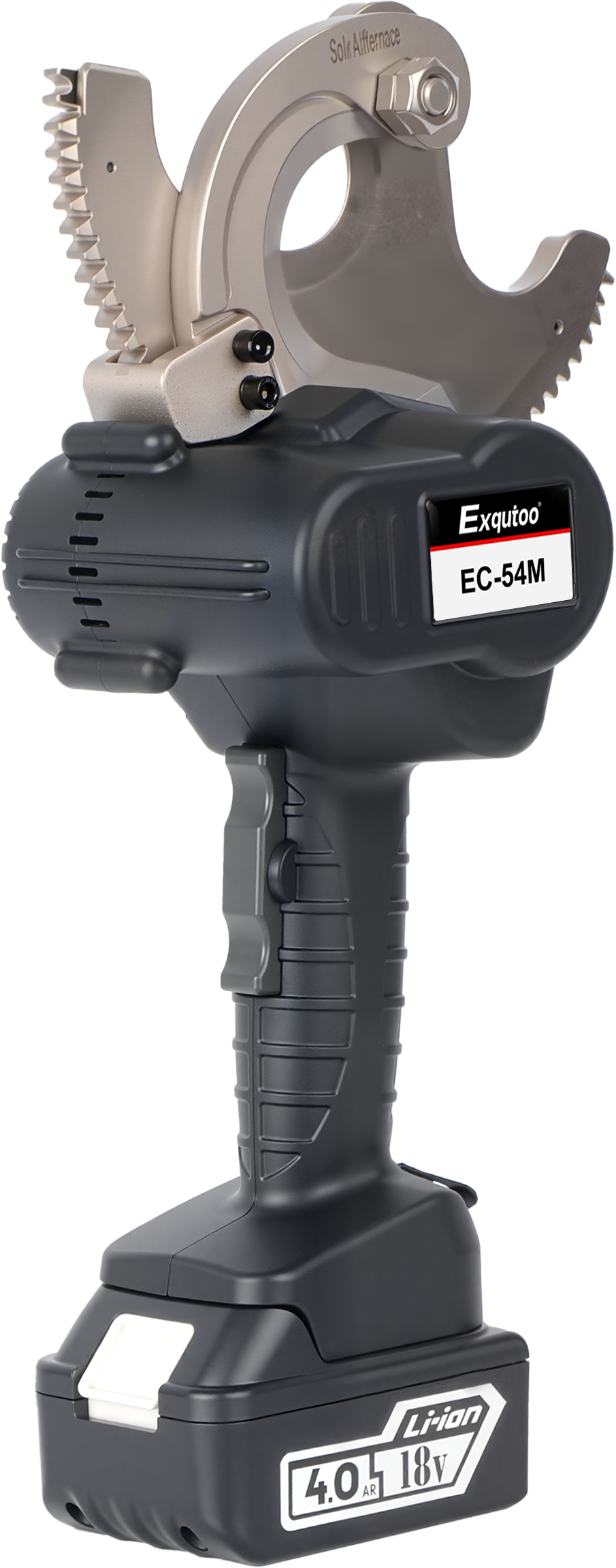

EXQUTOO EC-54M 18 V electric cable cutter
EC-54M cordless cable cutter
02
Powered cable preparation

EC-54M 18 V electric cable cutter

The existing performance details, specifications, package contents, material guidance, and product imagery are retained below.

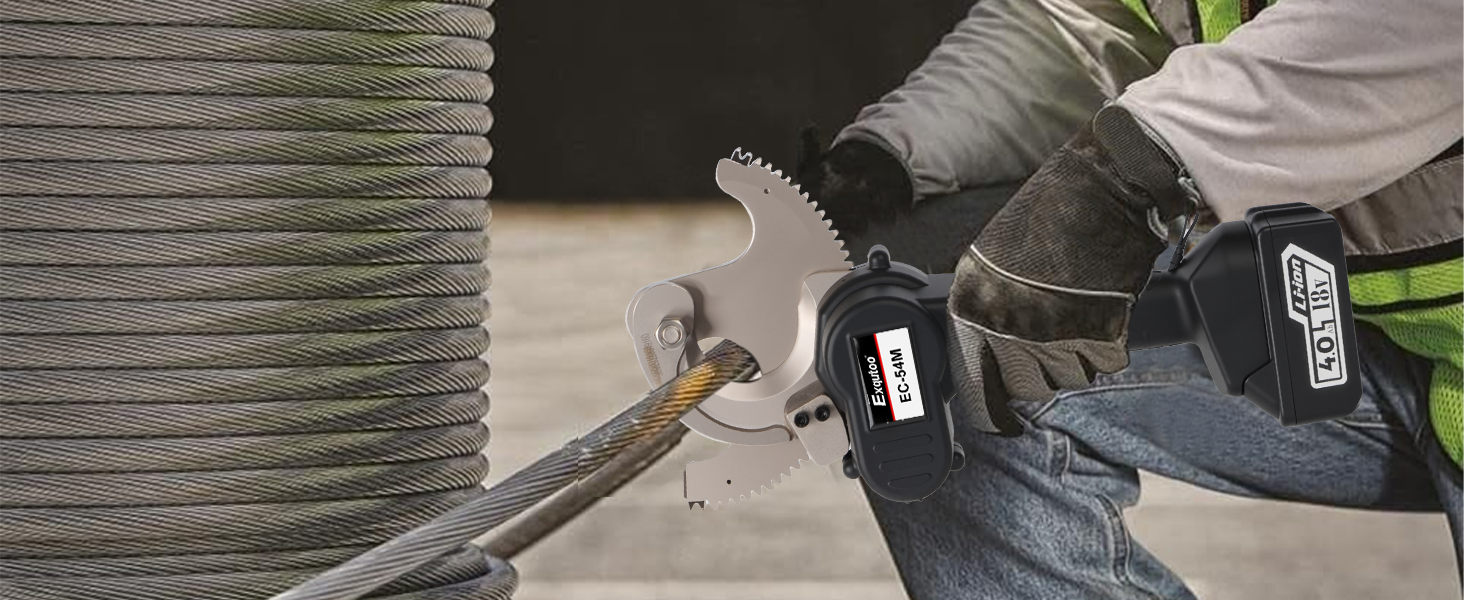

EXQUTOO EC-54M cable cutter preparing a supported cable
Fast cable preparation

Prepare large cable with powered cutting

The EC-54M combines fixed and moving blades with cut and retract controls. Its 54 mm opening accepts supported large conductors while the 18 V platform supports field operation.

  • Fixed and moving blades support controlled cable preparation
  • Handle controls manage cutting and blade retraction
  • 60Si2MnA blade material supports the stated cable ranges
  • Wrist strap attachment assists field handling
Durable blade systemSupport the cable through the cut

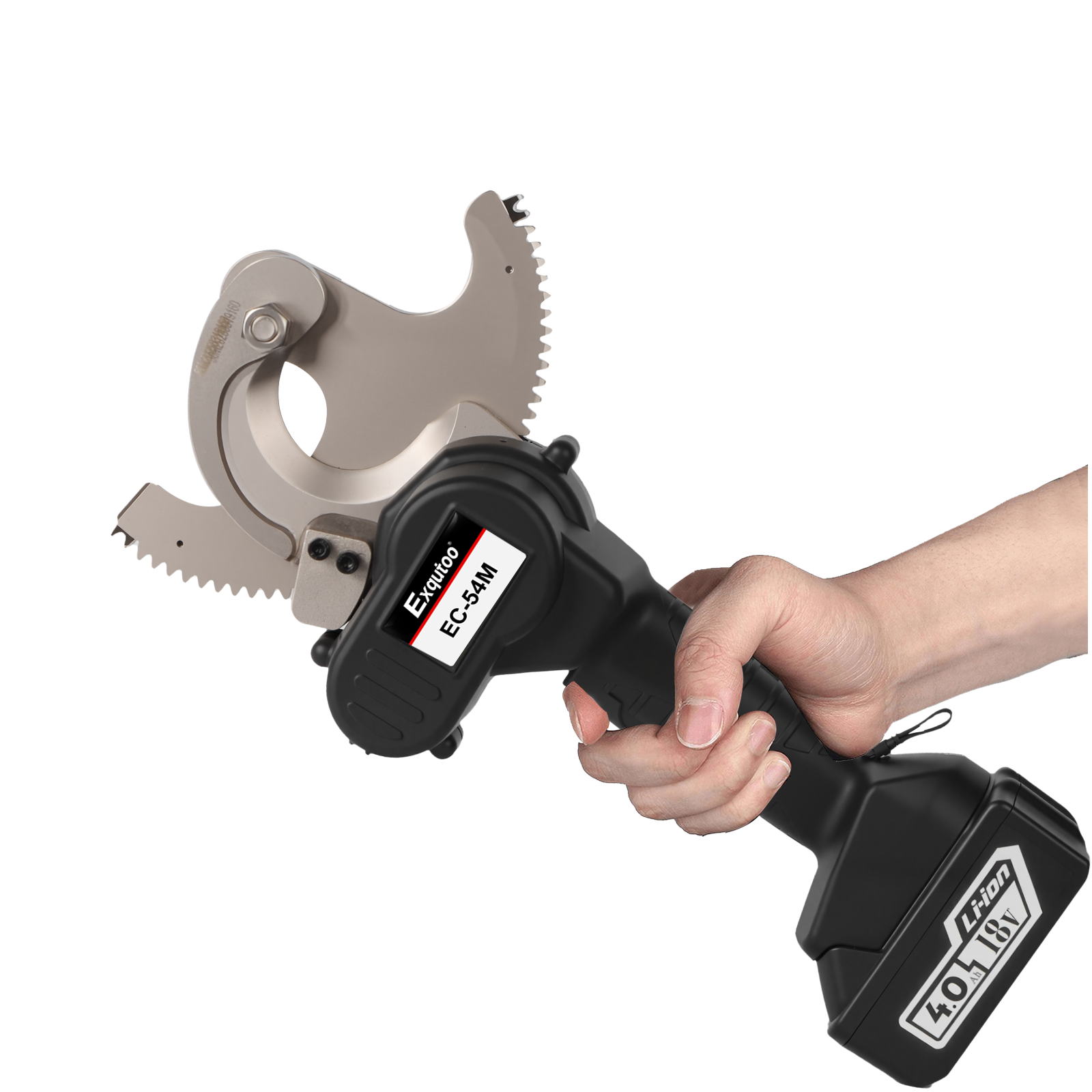

Fixed and moving blade system on the EXQUTOO EC-54M cable cutter

The fixed blade supports the conductor while the powered 60Si2MnA moving blade closes through supported cable constructions.

Broad cable coverageMatch the tool to the cable

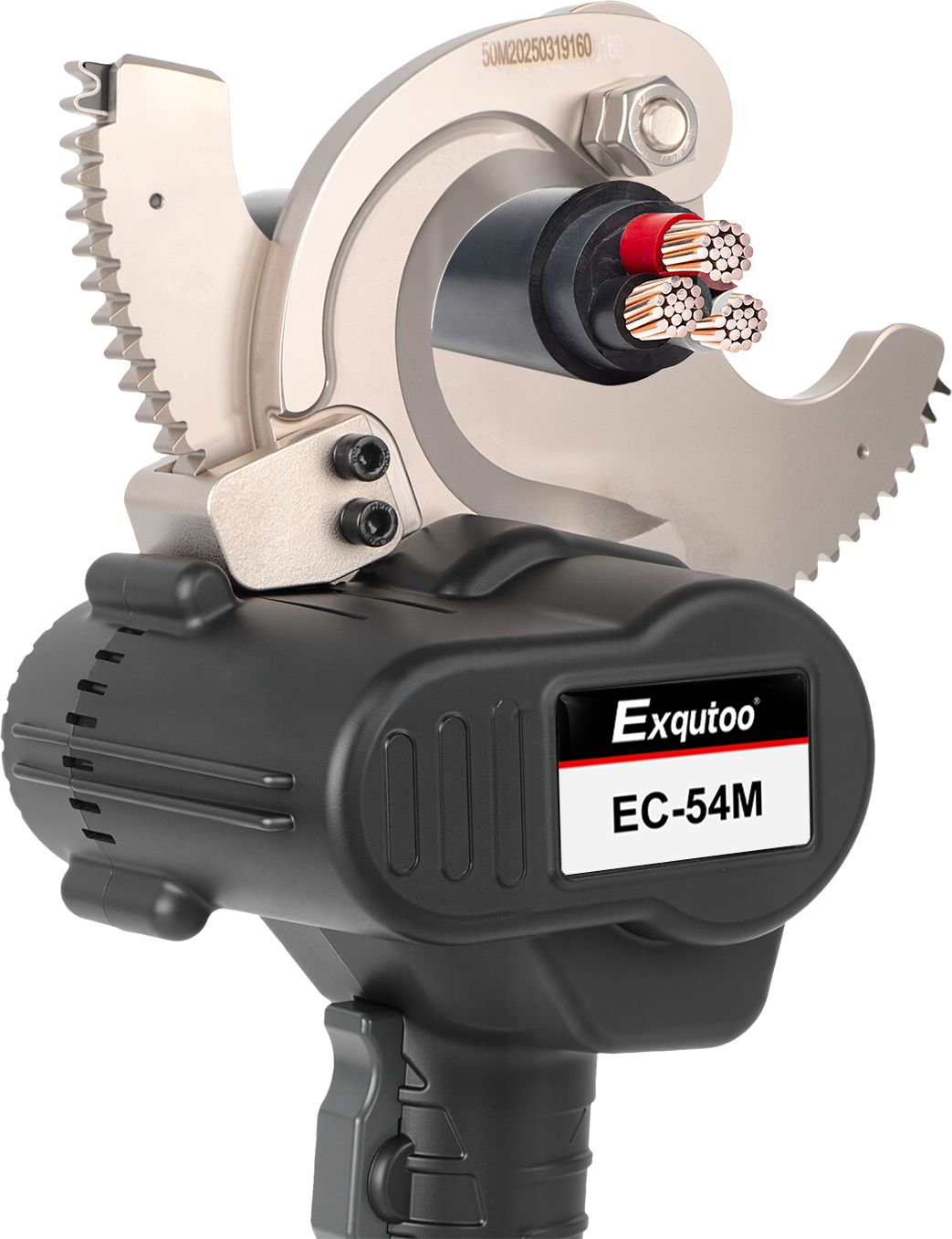

Supported cable ranges for the EXQUTOO EC-54M cutter

Cut copper cable up to 3 × 120 mm², aluminum cable up to 54 mm diameter, and ACSR cable up to 1200 mm².

Field powerKeep a spare battery ready

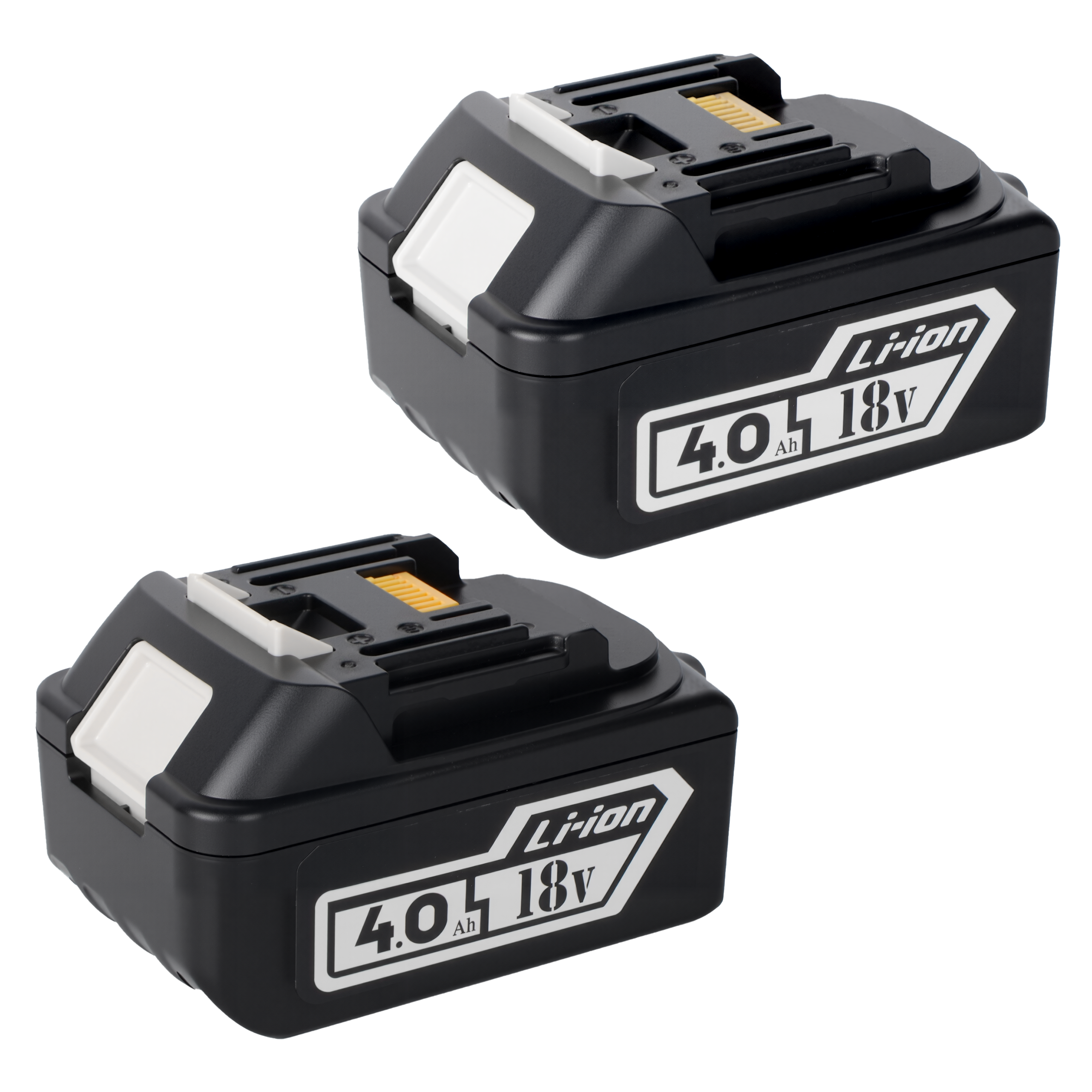

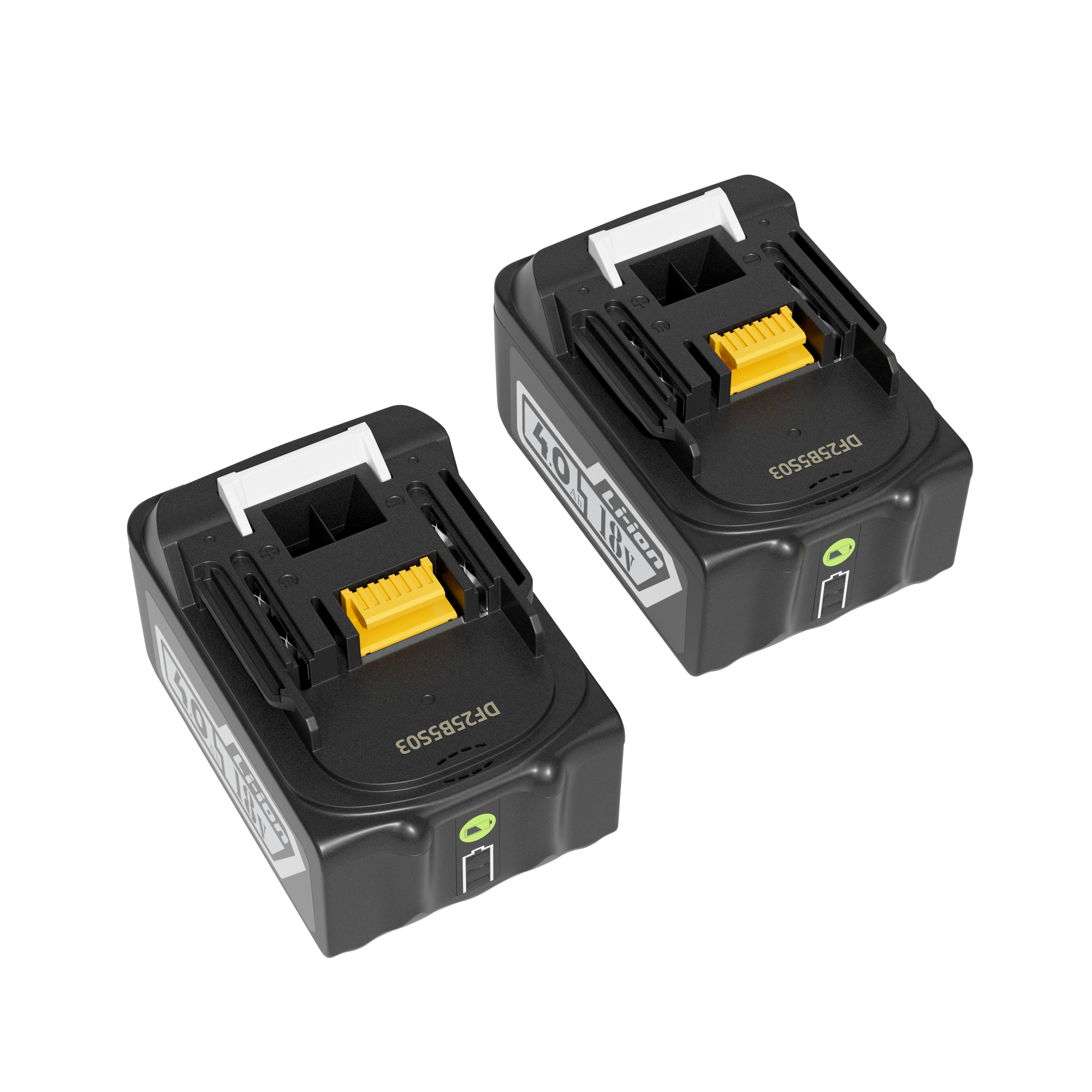

Two EXQUTOO 18 V 4 Ah batteries

The package includes two rechargeable 18 V 4 Ah lithium-ion batteries and one battery charger.

03
Technical data

EC-54M specifications

Brand / modelExqutoo EC-54M
Cutter opening54 mm
Copper cable capacityUp to 3 × 120 mm²
Aluminum cable capacityUp to 54 mm diameter
ACSR cable capacityUp to 1200 mm²
Battery voltage18 V DC
Battery capacity4 Ah each
Included batteries2
Body materialPA6
Blade material60Si2MnA
Tool size7.9 × 15.2 in
Package weight14.44 lb
Confirm the cable construction before cutting

Check conductor material, construction, and diameter against the stated capacities. Do not use the EC-54M on steel wire rope, rebar, iron chain, or material outside those capacities.

EXQUTOO EC-54M 18 V electric cable cutter
EC-54M material guidance

Confirm the cable before cutting

  1. Confirm conductor material, construction, and diameter before cutting.
  2. Match the cable to the stated copper, aluminum, ACSR, armored, or communication cable capacities.
  3. Do not rely on mm² or AWG/kcmil values alone to confirm material compatibility.
Supported

Designed cable applications

  • Copper wire and multi-core copper cable
  • Aluminum wire up to 54 mm diameter
  • ACSR cable up to 1200 mm²
  • Armored cable within the stated capacity
  • Communication cable
Not supported

Do not cut these materials

  • Steel wire rope
  • Rebar or reinforcing steel
  • Iron chain
  • Materials beyond the stated tool capacity
Installation and use note

Select the cutter by conductor material, construction, and diameter. Do not use it on rigid metal products, unsupported steel assemblies, or material outside the stated capacities.

04
Ready for field work

Complete cutter package

The listed package keeps the cutter, two batteries, charger, manual, wrist strap, and storage case together for transport and setup.

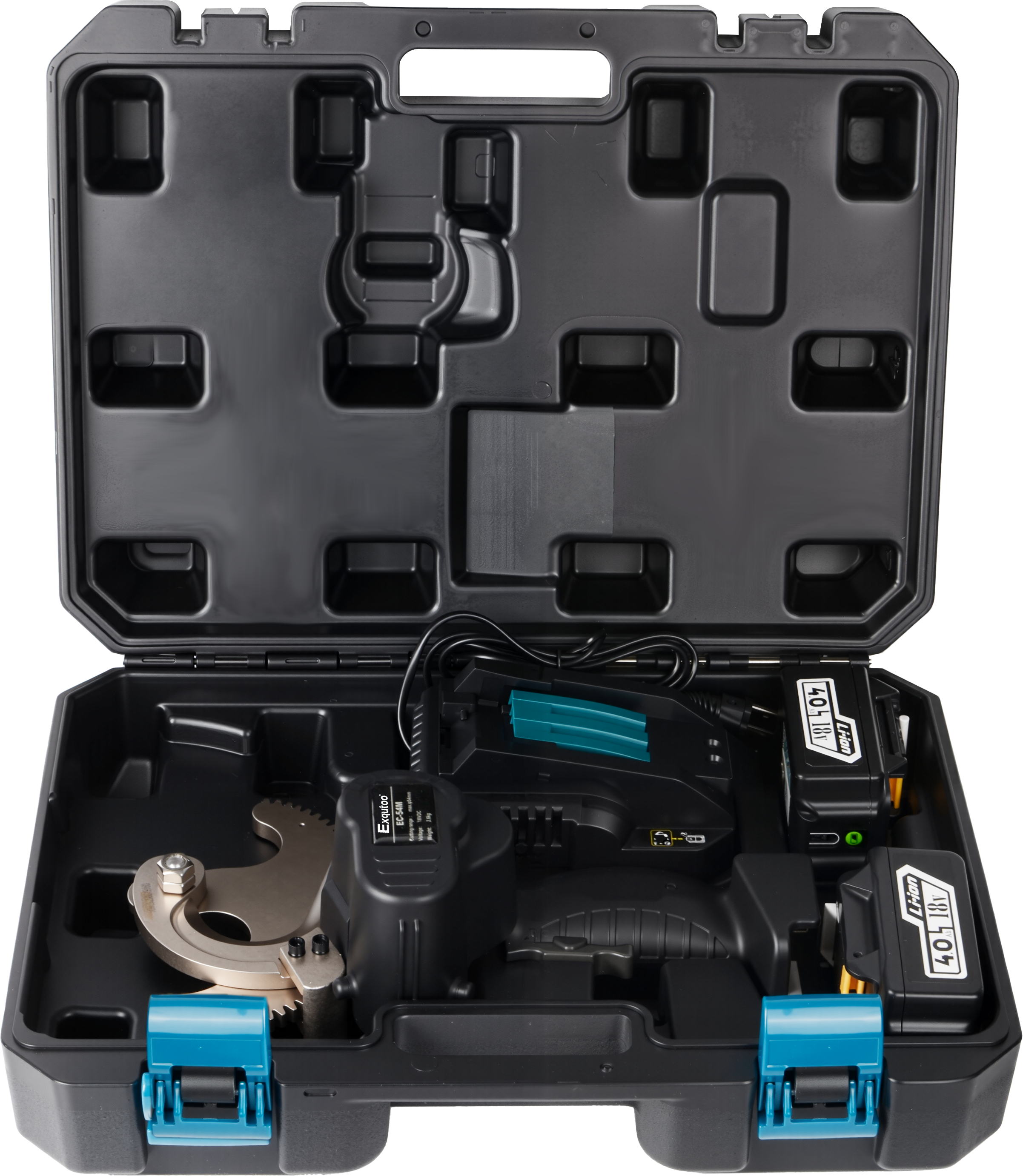

EXQUTOO EC-54M cutter kit in its storage case
EXQUTOO 18 V 4 Ah cutter battery

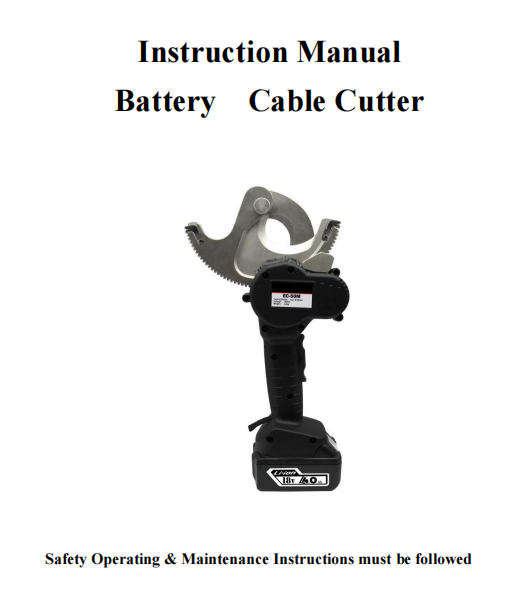

EXQUTOO EC-54M instruction manual
Package inventory

Complete listed configuration

EC-54M electric cable cutter1
18 V 4 Ah lithium-ion batteries2
Battery charger1
User manual1
Wrist strapIncluded
Storage caseIncluded
05
Continue comparing

Related product page

Use the current product catalog to continue reviewing compatible project needs.

EXQUTOO 120 kN electric hydraulic cable lug crimper Cable termination 120 kN Electric Hydraulic Cable Lug Crimper Create secure electrical cable-lug terminations for installation, infrastructure, and maintenance work. Review product page Product directory Review all seven current EXQUTOO product pages. Compare cable tools, power and EV, wiring, hardware, and woodworking families. Open product catalog
